7W 10W UGR

Luminous Efficiency : 85-100 lm/w

Model Number : HS-DL-G-XX-ND

Luminous Flux : 600-1200 lm

Power : 5W/7W/9W/12W

Price : $14.78-18.67

Lifespan : 50000 hours

IP Rating : IP20

Input Voltage : AC 220V( ± 10%)

MOQ : 30

Place of Origin : Guangdong, China

Color Temperature : 3000k 4000k 6000k

Certification : CE RoHS

Beam Angle : 15/24/38/60

Contact Now

This G Series LED Downlight is designed for commercial and residential lighting applications, including hotels, retail stores, offices, restaurants and modern interior spaces.

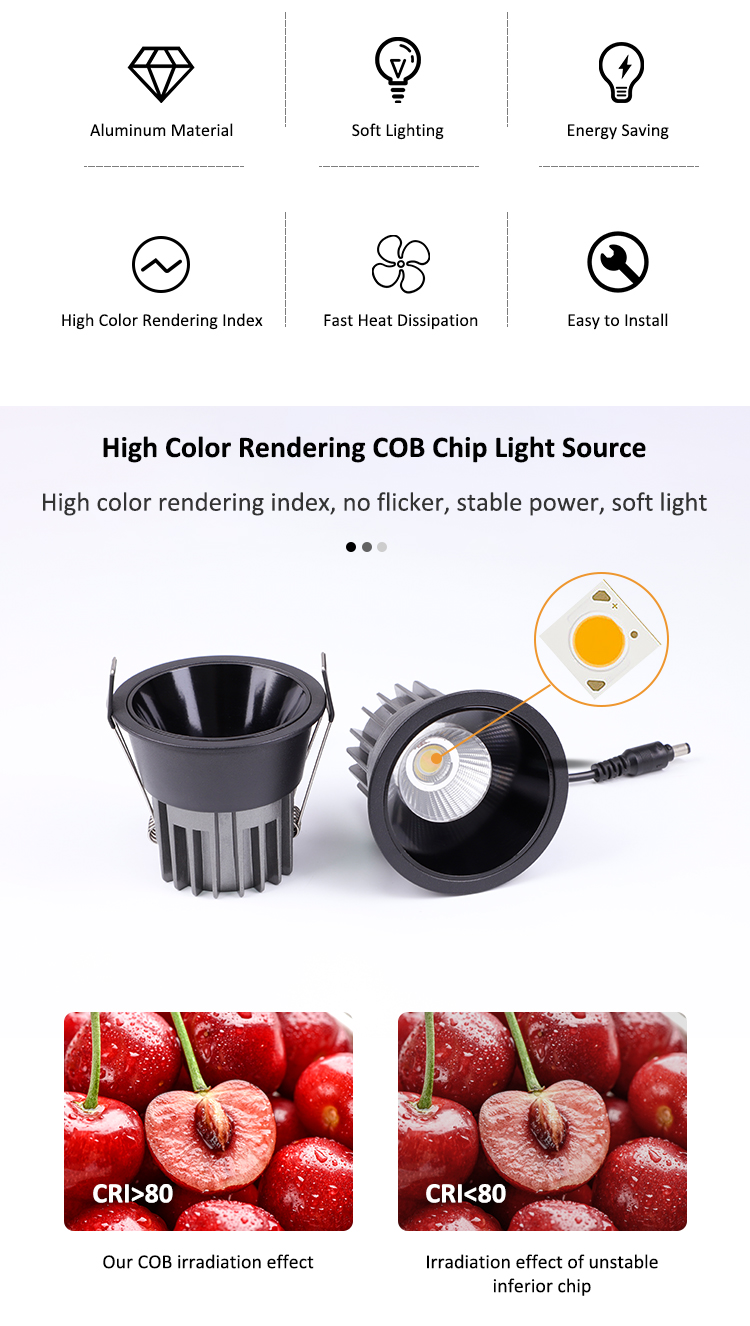

Featuring a high-quality COB LED light source, deep anti-glare reflector design and efficient aluminum heat sink, it delivers comfortable illumination with excellent thermal management and long-lasting performance. The compact recessed design provides a clean and elegant appearance, while multiple beam angles and color temperature options meet different lighting requirements. With high luminous efficiency, low energy consumption and reliable driver performance, this LED Downlight is an ideal solution for professional architectural and indoor lighting projects.

Technical Specifications

Model NO.	HS-DL-G-75-YY	HS-DL-G-84-YY	HS-DL-G-92-YY
Dimensions	φ74x70mm	φ84x76mm	φ92x92mm
Cutout	φ65mm	φ75mm	φ80-85mm
Power	7W	9W	12W
Luminous Flux	700LM	900LM	1200LM
Luminous Efficiency	100LM/W
Input Voltage	AC200-240V, 50/60Hz
Power Factor	>0.5/0.9
Color Temp.	3000K/4000K/5000K/6000K/CCT Changeable
CRI	80Ra
SDCM	SDCM<5
Lifespan	L80B10=100,000 Hours
Beam Angle	15°/24°/38°/60°
Dimming Type	Non Dimmable/Triac/0-10V/DALI/Zigbee 3.0/Blue Tooth
IP Rating	IP20
Main Materials	Die-casting Aluminum+PC
Working Temperature	-20℃ ~ +40℃
THD	<15%
Insulation Class	CLASS II
Safety Standards	EN IEC60598-2-1
EMC	EN 55015, EN IEC 61000-3-2
Certificate	CE RoHS
Warranty	5 Years
YY represents Dimmable Type, it can be ND/TD/1D/DD/ZD
ND: Non Dimmable TD: Triac Dimmable 1D: 1-10V Dimmable DD: DALI Dimmable ZD: ZIGBEE Dimmable
